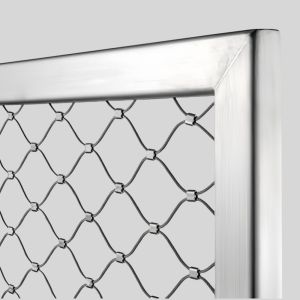

Frame Systems serve multiple purposes such as balustrade infills, fall protection, interior decoration, and support for greenery applications. Preassembled for elegance and high performance, these frames are easily installed on-site.
Frames are customizable with different-sized round tubes, square profiles, and rectangular or round slotted tubes. Round tube frames offer flexibility in shapes and radii, while square profiles and slotted tubes cater to various sizes as rectangles or parallelograms based on project needs.
The mesh diamonds' direction can be either vertical or horizontal, adapting to different applications. Frames can be produced from AISI 304, duplex, galvanized or painted steel, besides AISI 316 stainless steel as the standard option.
| Frame system type | Tube dimensions | Rope mesh opening | Mesh Diamond Direction |
| Round frame system | Ø21,3mm, Ø26,9mm, Ø33,7mm, Ø42,4mm in standard. Special diameters can be also accommodated based on projects requirements. | Rope diameter: 1,5mm, 2mm, 3mm Balustrade Systems: 25-80mm Safety Net Systems: 80-120mm Greenery Systems: 120-180mm | Horizontal and Vertical |
| Rectangular Frame System | 20x20mm, 25x25mm and 30x30mm Special diameters can be also accommodated based on projects requirements. | Rope diameter: 1,5mm, 2mm, 3mm Balustrade Systems: 25-80mm Safety Net Systems: 80-120mm Greenery Systems: 120-180mm | Horizontal and Vertical |
| Slotted rectangular frame system | 30x20x1,5mm | Rope diameter, 1,5mm Balustrade Systems, 25-80mm | Horizontal and Vertical |
